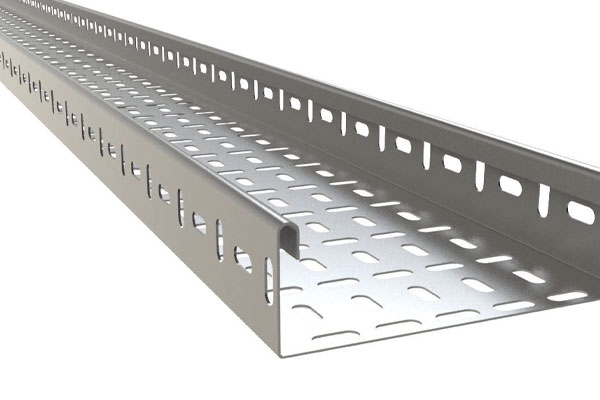

Designed for efficient cable management, perforated cable trays offer excellent ventilation and support for electrical wires in industrial and commercial installations. Made from durable metal with evenly spaced holes for heat dissipation and cable tie-downs.
✓ Width (W): 50mm - 1200mm
✓ Height (H): 25mm - 150mm
✓ Thickness (T): 1.6 mm, 2 mm, 2.5 mm & 3mm
✓ Length (L): 2500 mm / 3000 mm
✓ Finished: Pregalvanized, hot dip galvanized,
✓ powder coated, aluminium, stainless steel
✓ Raw material: Mild steel, pregalvanized,
✓ aluminium, SS-304, SS-311

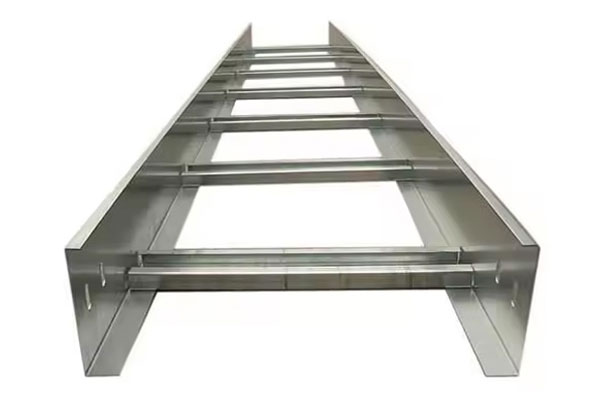

Engineered for heavy-duty cable support, ladder cable trays provide robust structure and easy cable entry and exit. Ideal for industrial settings, they ensure superior ventilation and long-span performance.
✓ Width (W): 150 mm – 1500 mm
✓ Side Channel: 50 mm – 150 mm
✓ Height (H) Run Width: 30 mm – 50 mm
✓ Run Height: 10 mm – 20 mm
✓ Run CtoC: 150 mm / 250 mm / 300 mm
✓ Thickness (T): 1.5 mm, 1.6 mm, 2 mm, 2.5 mm & 3 mm
✓ Length (L): 2500 mm / 3000 mm
✓ Finished: Pregalvanized, hot dip galvanized, powder coated, aluminium, stainless
steel
✓ Raw Material: Mild steel, pregalvanized, aluminium, SS-304, SS-311

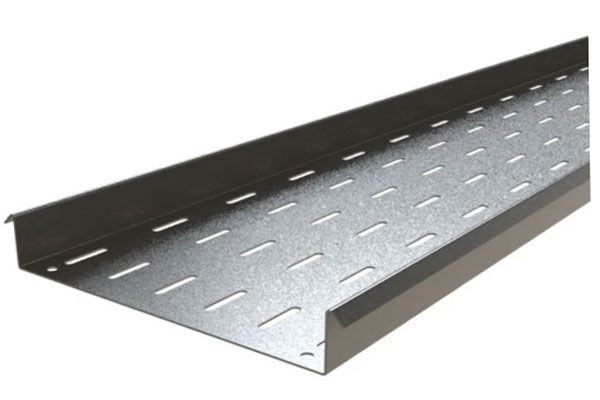

Designed for added load-bearing capacity, this tray combines the ventilation benefits of a perforated design with reinforced flanges for extra strength. Ideal for supporting heavier cable bundles in demanding industrial environments.
✓ Width (W): 100 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm
✓ Height (H): 50 mm / 75 mm / 100 mm
✓ Thickness (T): 1 mm / 1.2 mm / 1.5 mm
✓ Length (L): 2500 mm / 3000 mm
✓ Finished: Pregalvanized, hot dip galvanized, powder coated, aluminium, stainless
steel
✓ Raw Material: Mild steel, pregalvanized, aluminium, SS304, SS-311

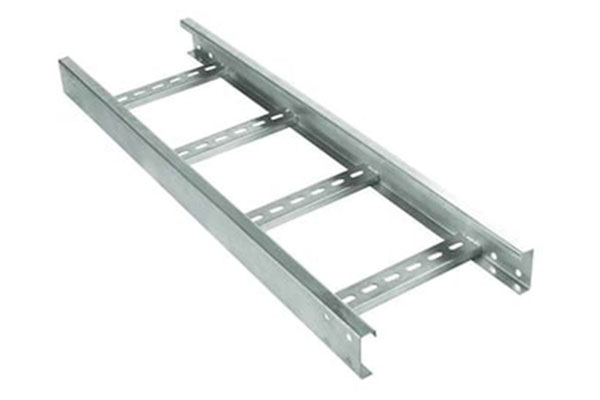

Angle ladder cable trays are designed with side rails bent at an angle, offering increased strength and stability for vertical or angled cable runs. Ideal for complex routing in industrial environments where directional changes are needed.
✓ Width (W): 150 mm – 1200 mm
✓ Side Channel: 25 mm – 100 mm
✓ Run Width: 25 mm – 100 mm
✓ Run CtoC: 250 mm / 300 mm
✓ Thickness (T): 3 mm, 10 mm
✓ Length (L): 2500 mm / 3000 mm
✓ Finished: Hot dip galvanized, powder coated, mild steel painted
✓ Raw Material: Mild steel

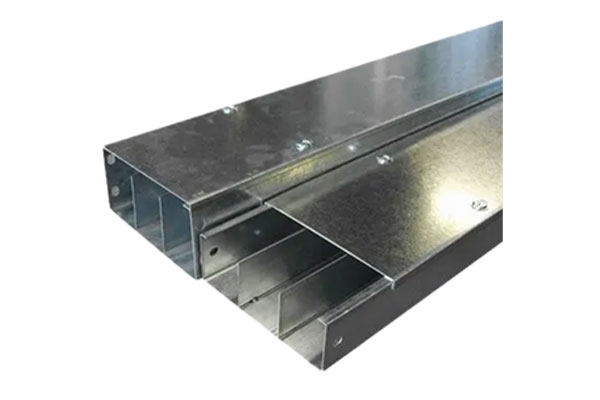

Raceway ducts provide a clean and organized solution for routing and protecting electrical cables along walls or ceilings. Ideal for commercial and industrial setups, they offer easy installation, safe cable management, and a neat appearance.
✓ Width (W): 50 mm – 1200 mm
✓ Height (H): 25 mm – 50 mm
✓ Thickness (T): 1.6 mm, 2 mm, 2.5 mm & 3 mm
✓ Length (L): 2500 mm / 3000 mm & 2444 mm (for aluminium)
✓ Finished: Pregalvanized, hot dip galvanized, powder coated, aluminium, stainless
steel
✓ Raw Material: Mild steel, pregalvanized, aluminium, SS-304, SS-311

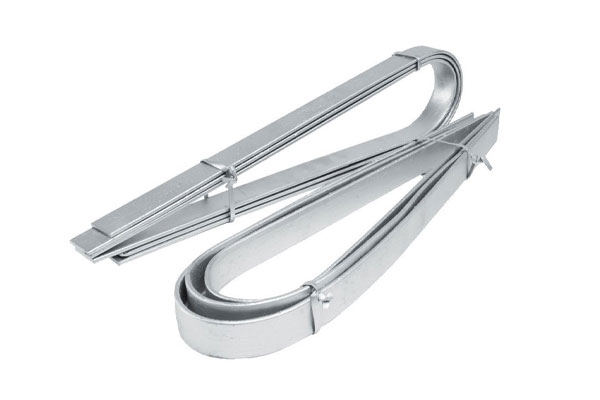

GI (Galvanized Iron) earthing strips are used for safe electrical grounding in industrial and commercial installations. They offer excellent conductivity, corrosion resistance, and durability, ensuring reliable fault current discharge and system protection.
✓ Width (W): 25 mm – 75 mm
✓ Thickness (T): 3 mm – 6 mm
✓ Length (L): 3000 mm standard (custom on request)
✓ Material: Galvanized iron (GI)
✓ Finish: Hot dip galvanized for corrosion resistance
✓ Application: Electrical earthing and grounding systems
✓ Type: Solid flat strip
✓ Highly durable and weather-resistant

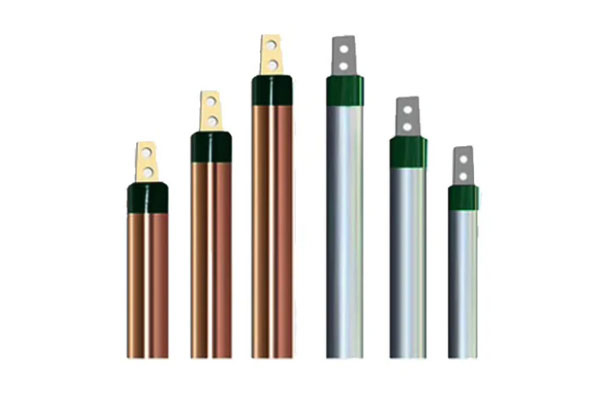

Chemical earthing ensures long-lasting, low-resistance grounding by using earth enhancement compounds. Ideal for areas with high soil resistivity, it provides stable and safe fault current dissipation with minimal maintenance.
✓ Electrode Type: Pipe-in-pipe or strip-in-pipe design
✓ Electrode Size: 48 mm – 76 mm outer diameter
✓ Length: 1 meter / 2 meter / 3 meter
✓ Material: GI / copper bonded / pure copper
✓ Terminal: 25 mm – 50 mm flat or bolt-on terminal
✓ Backfill Compound: Conductive compound with moisture retention
✓ Resistance: Maintains low resistance over time
✓ Application: Industrial, commercial, and residential earthing

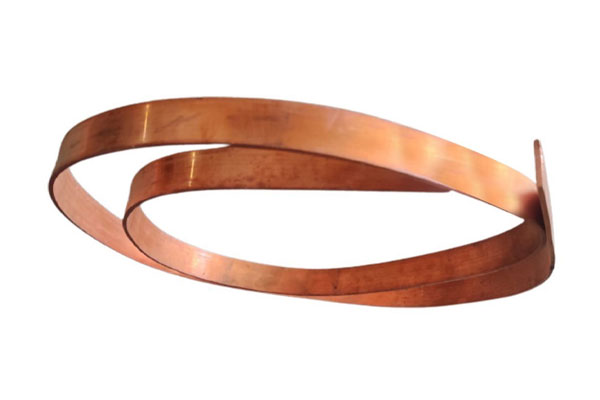

Copper earthing strips provide excellent electrical conductivity and corrosion resistance, making them ideal for high-performance grounding systems in industrial, commercial, and sensitive electrical installations.
✓ Width (W): 25 mm – 75 mm
✓ Thickness (T): 3 mm – 6 mm
✓ Length (L): 3000 mm (custom lengths available)
✓ Material: Electrolytic grade copper / tinned copper
✓ Conductivity: Over 98% IACS
✓ Finish: Bright / tinned / oxidized as required
✓ Application: Electrical grounding, lightning protection
✓ Type: Solid flat strip for low impedance earthing

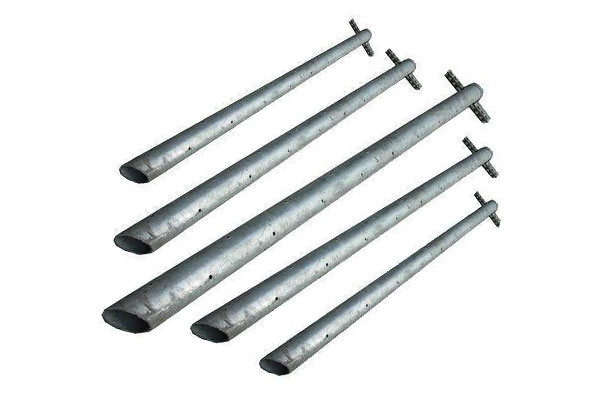

GI earthing pipes offer a cost-effective and durable grounding solution for industrial, residential, and commercial electrical systems. Hot dip galvanized for corrosion resistance, they ensure safe dissipation of fault currents into the ground.
✓ Pipe Diameter: 40 mm / 50 mm / 76 mm
✓ Pipe Length: 1 meter / 2 meter / 3 meter
✓ Thickness (T): 2.5 mm – 3.5 mm
✓ Material: Mild steel (hot dip galvanized)
✓ Terminal Size: 25 mm – 50 mm flat terminal
✓ Hole Size: 10 mm / 12 mm for effective soil contact
✓ Coating: 80–100 microns zinc coating (avg.)
✓ Application: Power stations, substations, buildings, and industrial grounding
GI earth electrodes provide a cost-effective and maintenance-free solution for safe electrical grounding. Made from galvanized iron, they offer durability, corrosion resistance, and consistent performance across various soil conditions.
✓ Electrode Type: Pipe-in-pipe / strip-in-pipe design
✓ Outer Pipe Diameter: 48 mm – 76 mm
✓ Inner Strip Size: 25 mm × 3 mm / 25 mm × 6 mm
✓ Length: 1 meter / 2 meter / 3 meter
✓ Material: Galvanized iron (GI)
✓ Terminal Size: 25 mm – 50 mm flat terminal
✓ Coating: Hot dip galvanized (avg. 80–100 microns)
✓ Application: Residential, commercial, and industrial earthing systems

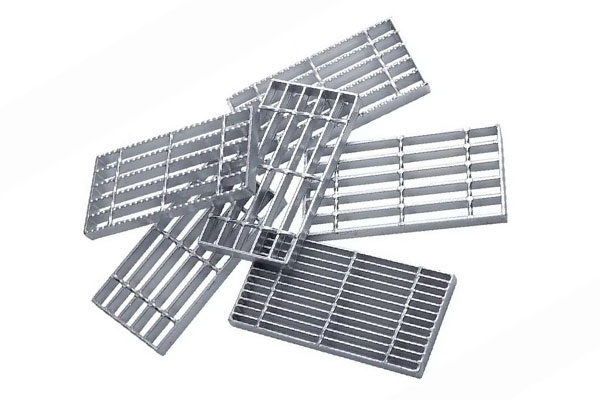

GI grating provides a durable, slip-resistant surface for industrial flooring, walkways, and trench covers. Manufactured from galvanized steel, it offers high load-bearing capacity and excellent corrosion resistance for harsh environments.
✓ Material: Galvanized iron (GI)
✓ Type: Welded / press-locked grating
✓ Bearing Bar Size: 25 mm × 3 mm to 50 mm × 6 mm
✓ Mesh Size: 25 mm × 100 mm / 30 mm × 100 mm / custom
✓ Thickness: 3 mm – 6 mm
✓ Finish: Hot dip galvanized
✓ Load Capacity: Medium to heavy-duty (custom as per requirement)
✓ Application: Industrial flooring, trench covers, platforms, catwalks

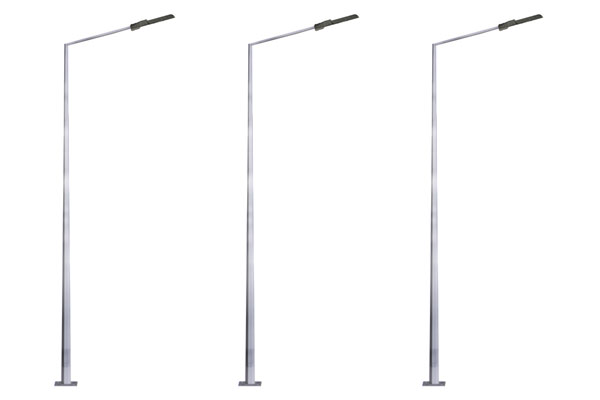

Lighting poles are designed to support street lights, floodlights, and outdoor fixtures in public and industrial areas. Made from galvanized steel or mild steel, they offer strength, stability, and corrosion resistance for long-term performance.
✓ Height: 3 meter – 12 meter
✓ Type: Octagonal / conical / tubular poles
✓ Material: Mild steel / galvanized iron
✓ Thickness (T): 3 mm – 5 mm
✓ Finish: Hot dip galvanized / painted
✓ Base Plate: Customized as per design
✓ Mounting: Single / double arm bracket options
✓ Application: Street lighting, parking lots, gardens, highways, industrial zones
